Wide range of glass tubular bubble level vials
shade
Glass tubular bubble level vial, also known as glass tubular level vial, is a simple and effective measuring tool used in a variety of levels or gauges to check whether the surface is level or not. It is used in home renovation, construction, engineering surveying, photography, etc. In order to meet the accuracy requirements of different scenarios, we provide two types of precision glass tubular bubble level vials: high precision glass tubular bubble level vials and general precision glass tubular bubble level vials. Whether you need high precision for precise measurement or daily adjustment, we can provide you with matching products.
Wide range of glass tubular bubble level vials
Features
Type
Tipless and frosted finish

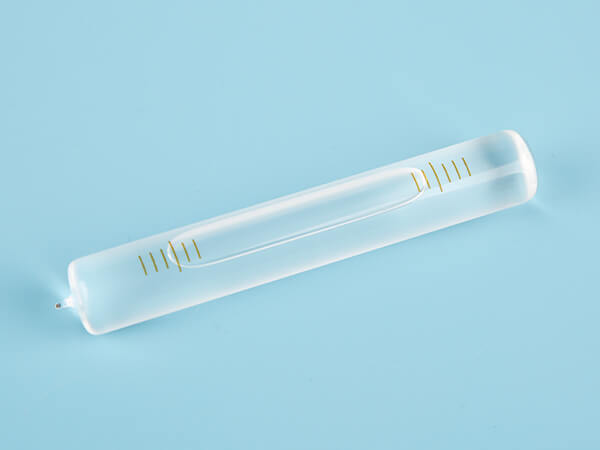

Single tip and frosted finish

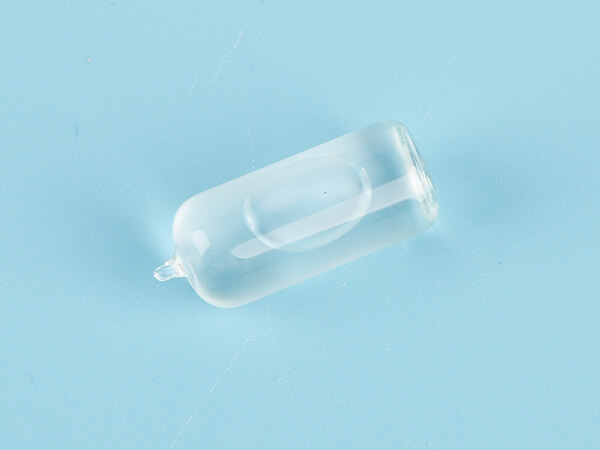

Single tip and no scale

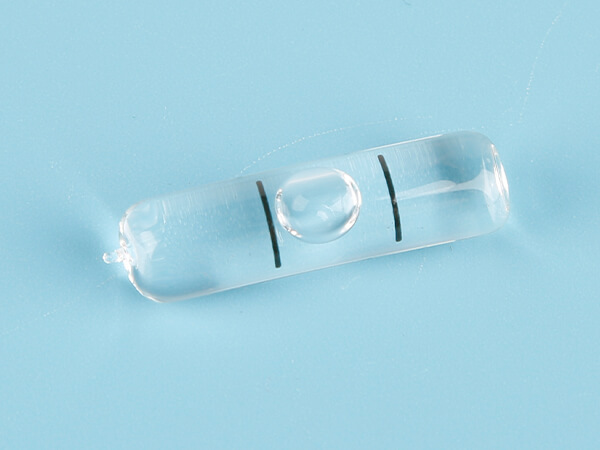

Single tip and double black sight lines
Double tips

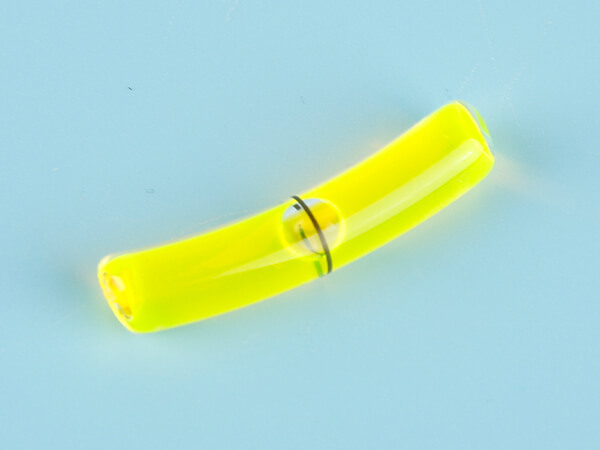

No tip, arc, single black sight line and fluorescent

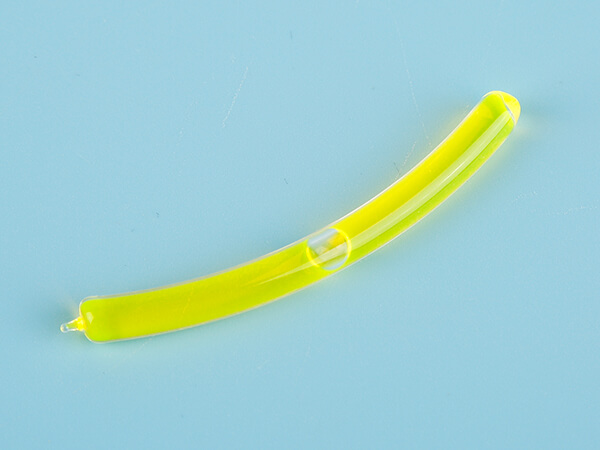

Single tip, arc, and fluorescent

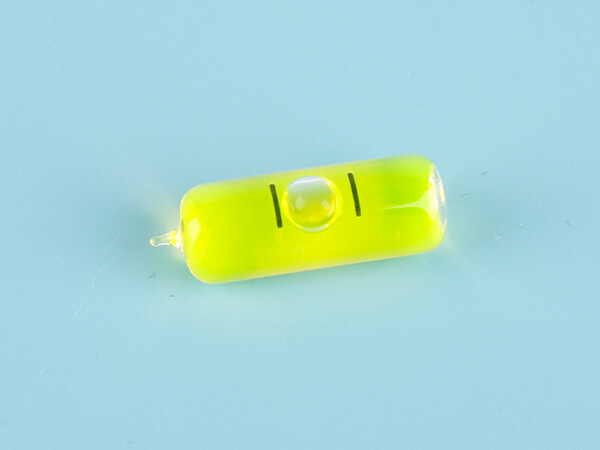

Small single tip, double black sight lines, and fluorescent

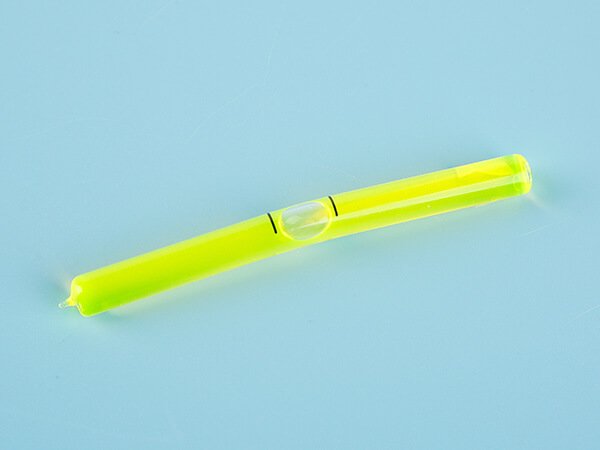

Single tip, double black sight lines, and fluorescent

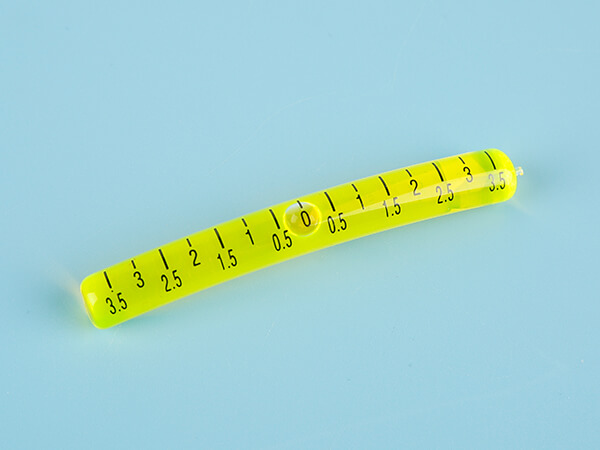

Precision scales and fluorescent
Specification

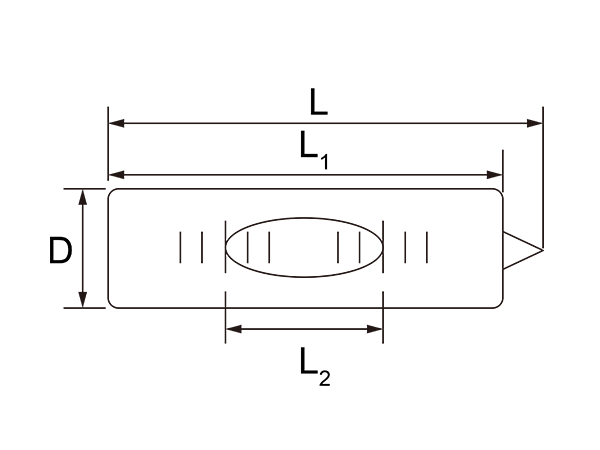

Glass tubular bubble level drawing
| Number | Sensitivity | Diameter (mm) |
Length (mm) |
Line Color | Line Quantity |
|---|---|---|---|---|---|
| HPG-1 | 4" per 2 mm | 14 | 96 | Red | 9 |
| HPG-2 | 4" per 2 mm | 12 | 96 | Black | 13 |
| HPG-3 | 4" per 2 mm | 14 | 110 | Red | 13 |
| HPG-4 | 4" per 2 mm | 12 | 96 | Black | 13 |
| HPG-5 | 4" per 2 mm | 13 | 65 | Red | 7 |
| HPG-6 | 4" per 2 mm | 12 | 65 | Black | 7 |
| HPG-7 | 10" per 2 mm | 14 | 96 | Red | 9 |
| HPG-8 | 10" per 2 mm | 13 | 65 | Red | 7 |
| HPG-9 | 10" per 2 mm | 11 | 80 | Black | 11 |
| HPG-10 | 20" per 2 mm | 14 | 96 | Red | 9 |
| HPG-11 | 20" per 2 mm | 13 | 65 | Red | 7 |
| HPG-12 | 20" per 2 mm | 13 | 50 | Red | 6 |
| Number | Sensitivity | Diameter (mm) |
L (mm) |
L1 (mm) |
L2 (mm) |
|---|---|---|---|---|---|
| GTL-1 | 20" per 2 mm | 10 | 35 | 32 | 14 |
| GTL-2 | 20" per 2 mm | 10 | 37 | 34 | 16 |
| GTL-3 | 20" per 2 mm | 11 | 38 | 35 | 14 |
| GTL-4 | 20" per 2 mm | 11 | 54 | 49 | 18 |
| GTL-5 | 20" per 2 mm | 11 | 55 | 49 | 20 |
| GTL-6 | 20" per 2 mm | 12 | 47 | 43 | 20 |
| GTL-7 | 20" per 2 mm | 12 | 66 | 63 | 28 |
| GTL-8 | 30" per 2 mm | 10 | 33 | 30 | 12 |
| GTL-9 | 30" per 2 mm | 10 | 35 | 32 | 12 |
| GTL-10 | 30" per 2 mm | 10 | 35 | 32 | 14 |
| GTL-11 | 30" per 2 mm | 10 | 45 | 42 | 20 |
| GTL-12 | 30" per 2 mm | 10.5 | 36 | 33 | 12 |
| GTL-13 | 30" per 2 mm | 11 | 37.5 | 34 | 14 |
| GTL-14 | 30" per 2 mm | 11 | 38 | 35 | 14 |
| GTL-15 | 30" per 2 mm | 11 | 39 | 35 | 12 |
| GTL-16 | 30" per 2 mm | 11 | 54 | 50 | 18 |
| GTL-17 | 30" per 2 mm | 11 | 55 | 49 | 20 |
| GTL-18 | 30" per 2 mm | 12 | 46 | 43 | 20 |
| GTL-19 | 30" per 2 mm | 14 | 70 | 66 | 24 |
| GTL-20 | 40" per 1 DIV | 10 | 35 | 32 | 12 |
| GTL-21 | 40" per 2 mm | 10 | 35 | 32 | 14 |
| GTL-22 | 40" per 2 mm | 11 | 38 | 35 | 14 |
| GTL-23 | 40" per 2 mm | 11 | 40 | 34 | 14 |
| GTL-24 | 40" per 2 mm | 12 | 46 | 43 | 20 |
| GTL-25 | 45" per 2 mm | 10.5 | 38 | 35 | 12 |
| GTL-26 | 45" per 2 mm | 11 | 39 | 35 | 12 |
| GTL-27 | 45" per 2 mm | 11 | 42 | 39 | 14 |
| GTL-28 | 45" per 2 mm | 11 | 55 | 49 | 20 |
| GTL-29 | 60" per 2 mm | 9 | 31 | 28 | 10 |
| GTL-30 | 60" per 2 mm | 10 | 35 | 32 | 14 |
| GTL-31 | 60" per 2 mm | 11 | 38 | 35 | 14 |
| GTL-32 | 60" per 2 mm | 12 | 46 | 43 | 20 |
| GTL-33 | 90" per 2 mm | 10 | 41 | 38 | 12 |
| GTL-34 | 90" per 2 mm | 10 | 42 | 39 | 14 |
Application

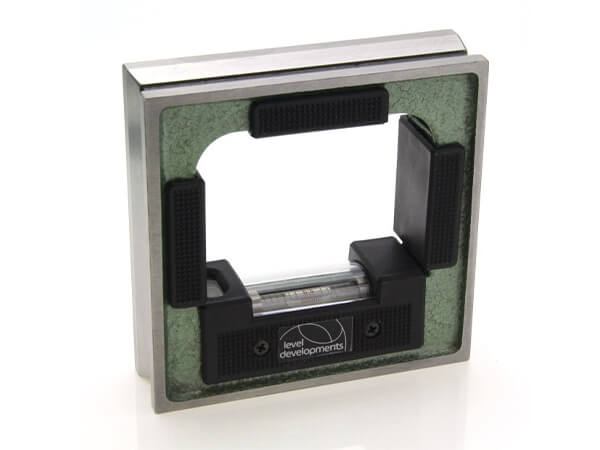

Frame leveler

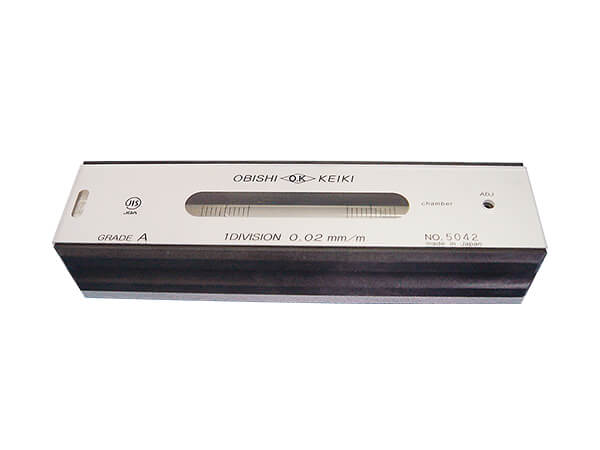

Imaging-level meter

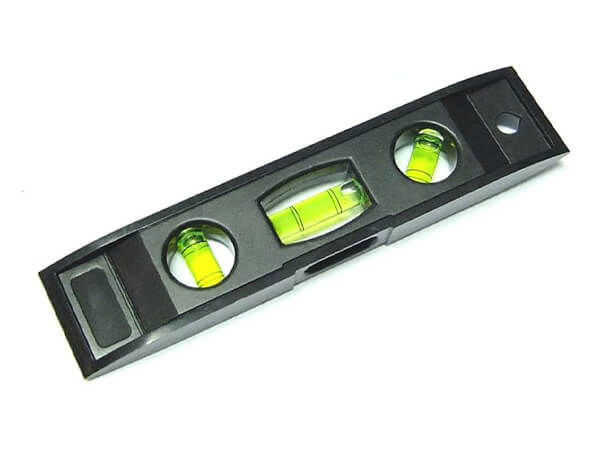

Bar-level meter
